เครื่องวิเคราะห์โครมาโทกราฟี
รายละเอียดสินค้า เครื่องวิเคราะห์โครมาโทกราฟี

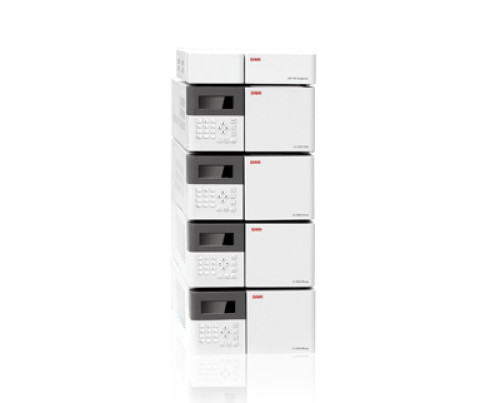

K2025
High Performance Liquid Chromatography
Product details:
Reliability
With the reliable design and high-quality components, K2025 passes the reliability test performed by authority, ensuring the long-term running in optimum condition.
Precision
The precision and accuracy of the results are guaranteed with our unique pumping and sampling technology, high sensitivity detector, and powerful data processing software.
Ease of use
The operation is more convenient and efficient with a variety of user-friendly designs in Wookinglab
Compliance
Wookinglab fully complies with FDA 21 CFR Part 11 with database mode and data traceability.
K2025 P1/P2/P4 Pump
Specifications:
Precision
Excellent repeatability
The precise gradient change and retention time are guaranteed with the reciprocating tandem plunger pump and pressure dynamic suppression algorithm. The repeatability of retention time is less than 0.2%.
Reliability
The reliable design makes service life longer
Material
The cam is integrally processed from high-hardness alloy steel and combined with high-frequency heat treatment technology, which makes the surface of the cam is more wear-resistant (the hardness is above 55HRC), and the service life is longer.
Power
The high-power customized motor, Japanese NSK bearings, and independent air duct make the power and life even better.
Gearing
Self-lubricating and wear-resistant materials imported from Germany are used for the piston drive mechanism. Also, the inner wall rifling design prevents the piston from accidentally locking, making the gearing more reliable.
Plunger
The patented suspended floating plunger(Patent Number: ZL 2020 2 1896102.3 ) can adapt to the working conditions automatically, which is convenient for disassembly and prevents the eccentric wear of the sealing ring effectively. With the special sealing structure and the automatic cleaning of the plunger, the pump seal is more reliable.
Ease of use
Equipped with an online automatic rinsing mechanism
When the pump is working, the rinsing pump is automatically turned on and runs periodically, which can effectively prevent the crystallization of buffer salts and the growth of microorganisms, and prolong the service life of the plunger and plunger sealing.
Intelligent solvent replacement and evacuation to improve work efficiency
Equipped with a 4-channel solvent selection valve, according to the method and sequence used in the mobile phase, to achieve automatic switching.
Independent 4-channel gradient proportioning valve, easy for maintenance
The gradient proportioning valve of the quaternary pump adopts a 4-channel independent design. The intelligent monitoring and diagnosis can realize real-time monitoring and independent replacement of each channel, the whole design can reduce maintenance costs effectively.
K2025AS
Autosampler
Specifications:
Precision
Precise injection volume
The K2025AS autosampler adopts unique all-in-one constant pressure sampling needle (Patent Number: ZL 2020 2 1159205.1) and ultra-precision injection pump to ensure accurate injection volume and excellent injection linearity, thus making the quantitative results more accurate.
Low carryover to make results more accurate
The sampling needle is highly polished for the outer surface and passivated for the inner surface, which can effectively reduce the sample residue. The carryover is much lower when needle washing of the outer and inner surfaces are performed.
Reliability
Ease of use
Patented preloaded sample injection mode(Patent Number: ZL 2020 2 2977790.2), the injection time can be shortened to 5s, which greatly improves the efficiency.
A variety of injection modes combined with sample temperature control technology to satisfy different detection needs such as rare and unstable samples
The dehumidification function is optionally equipped to avoid the generation of condensed water, effectively prevent the sample from being diluted, and ensure accurate results
The maintenance is more convenient and efficient with the in-front injection valve.
K2025CO
Column Oven
Specifications:
Precision
Precise temperature control ensures good separation and repeatability
Using fuzzy PID intelligent temperature control algorithm, ban-based air circulation, and multiple insulation layer design, the column temperature is more accurate, stable, and uniform, the temperature stability is±0.1℃, and the temperature for each analysis are constant and consistent.
Reliability
Triple protection, more safe to use
Real-time liquid leak protection, intelligent monitoring of Peltier and cavity temperature, over-temperature power-off protection, triple safety protection designs, effectively prevents accidental liquid leakage and dangers caused by over-heating.
K2025UVD
UV-Vis Detector
Specifications:
Precision
Low LOD
Reliability
The patented transmission type deuterium lamp and static light path (Patent Number: ZL 2020 2 0832429.8) allow the light source switching without moving of lamp, which is more reliable. | With the patented design of the optical unit (Patent Number: ZL 2020 2 0832429.8) and the light source module, the service life is much longer. |
 |  |
Ease of use
Maintenance and safety
K2025DAD
Diode Array Detector
Specifications:
Precision
Spectral similarity alignment and peak purity determination are performed for precise qualitative and quantitative analysis
DAD provides full-spectrum information. The compounds can be identified by similarity comparison in the spectral database. Peak purity determination can be performed in the workstation.
K2025
Other Detectors
By using high-resolution K2025ATD, the detector can be equipped with versatile detectors such as Fluorescence Detector(FLD), Refractive Index Detector(RID), Evaporative Light Scattering Detector(ELSD), and CAD to meet the detection of different compounds.
Wookinglab Workstation
User-friendly
Ease of use
The workstation interface is flat designed to quickly complete method development, data acquisition, data processing, report editing and printing, etc..
The left side of the interface is the navigation area, on which functional modules can be quickly found, such as project management, spectrogram acquisition, and integral processing
The top of the acquisition interface is a common ribbon that allows you to edit and run methods and sequences without the need for multi-level menus
The right side of the acquisition interface is the status monitoring area, which dynamically displays the real-time status of the instrument
User-friendly design
The workstation has built-in the 2020 edition of the "Chinese Pharmacopoeia" and "Chinese Veterinary Pharmacopoeia" standard method library, which can be directly retrieved and recalled to improve work efficiency
The workstation provides intelligent diagnostics and maintenance reminders for the instrument
Precision
Powerful data-processing capability
Up to 25 integration events and 3 quantitative calculation methods (external standard method, internal standard method, and normalization method) for complex data.
Compliance
Database storage
With the professional database system, the encryption of original files and security of raw data can be guaranteed.
Backup and restore
Backup and restore of data can be easily performed in the workstation, which is convenient for users.
Multi-level permission management
Supports customized multi-level system for access to data, ensuring the effectiveness of the system.
Traceability
The workstation complies with FDA 21 CFR Part 11, with complete records and integrity traceability.
